What tools do I need?

Don't know what tools are needed for your testing work? We have compiled the following table for you. You should be able to find out the tools needed for your job.

Original (Phat)

Identify phat drives

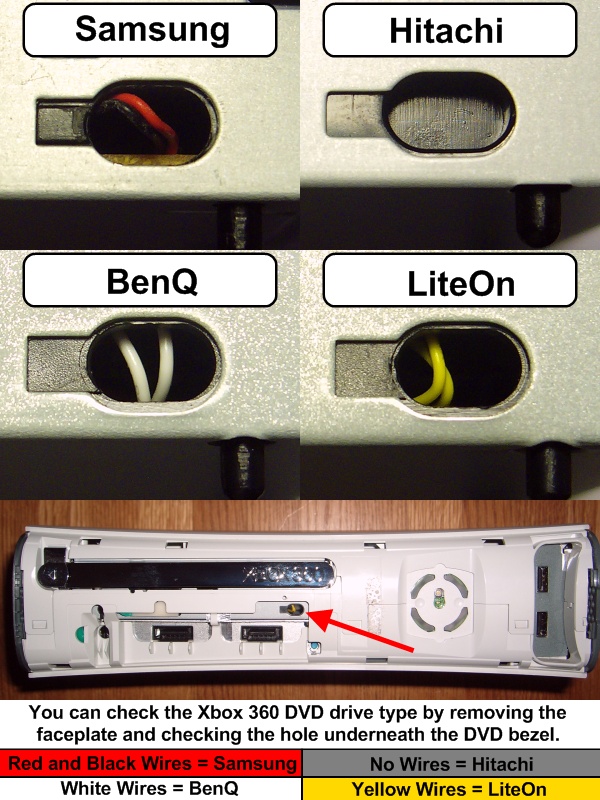

It is easy to check the drive type:


Tools needed for phat

The following table contains the tools needed for original (phat) drives:

# Brand Model Firmware Version Unlock Method Power the Drive SATA Access Key Extraction Bundle JTAG/NAND Flasher
1. Samsung (TS-H943) MS25/MS28 Stock Firmware Unlock not needed DIYGADGET Connectivity Kit V3 VT6421A PCI-SATA or VT6421 PCMCIA to SATA Probe not needed Probe not needed USB NAND Flasher with solderless addon or Parallel JTAG
2. Xtreme 3.3 to iXtreme 1.4 Activate.iso
3. iXtreme 1.5 to 1.61 Unlock via DIYGADGET Connectivity Kit V3 (tray half open method)
4. iXtreme LT Unlock not needed
5. Bad flash or above methods do not work Unlock using DIYGADGET PMT Tool
6. Hitachi Pre V78, V78 and V79 Stock firmware or non-stock firmware Soft mode-b via JF DIYGADGET Connectivity Kit V3 VT6421A PCI-SATA or VT6421 PCMCIA to SATA Probe not needed Probe not needed USB NAND Flasher with solderless addon or Parallel JTAG
7. Benq Stock, iXtreme 1.1 to 1.41, Xtreme/iXtreme LT Benq unlock via JF DIYGADGET Connectivity Kit V3 VT6421A PCI-SATA or VT6421 PCMCIA to SATA Probe not needed Probe not needed USB NAND Flasher with solderless addon or Parallel JTAG
8. iXtreme 1.5 to 1.61 Unlock via DIYGADGET Connectivity Kit V3 (tray half open method)
9. Liteon PLDS DG-16D2S Stock 74850C Not needed DIYGADGET Connectivity Kit V3 VT6421A PCI-SATA or VT6421 PCMCIA to SATA DIYGADGET USB Probe or Serial Probe DIYGADGET CK3 + USB Bundle or CK3+Serial Probe Bundle USB NAND Flasher with solderless addon or Parallel JTAG
10. Stock 83850C v1 Not needed via SATA
11. Stock 83850C V2 or Stock 93450C or 83850C V2 and 93450C with iX LT or 74850C, 83850C V1 with ix LT POGO MO THOIN (PMT) solderless binary Extractor(recommended) or DIYGADGET Solderless MRA tool or DIYGADGET LT Switch Probe not needed DIYGADGET CK3 + PMT Bundle(Recommended) or DIYGADGET CK3 + Solderless MRA Kit or DIYGADGET CK3 + LT Switch Kit
12. 83850C V2, 93450C with ix1.61 or 74850C, 83850C V1 with Pre-iX LT, Not needed Probe not needed Probe not needed
13. Stock 02510 (after update 13146) POGO MO THOIN (PMT) solderless binary Extractor(recommended) or DIYGADGET Solderless MRA tool or DIYGADGET LT Switch Probe not needed DIYGADGET CK3 + PMT Bundle(Recommended) or DIYGADGET CK3 + Solderless MRA Kit or DIYGADGET CK3 + LT Switch Kit

Slim

Identify slim drives

Currently several different slim drives exist:

  • LiteOn DG-16D4S (FW Ver. 9504 or if updated 0272)
  • LiteOn DG-16D4S (FW Ver. 0225 ,0401, 1071) (Drive Key can be dumped ONLY (unless unlocked))
  • Hitachi (FW Ver. 0500)

Note: There are also some mis-labelled as 9504 and are actually 0225, the only 100% method is to connect your drive to your PC and see how it reports in Jungleflasher. If it reports as 0272 is has been updated by dashboard update 13146.

Currently Only the Lite-On Slim Drive with 9504/0272 (pre 13599 dashboard) can be written to (unless you have a unlocked 0225/0401 – Rare!) The Drives with Firmware Version 0272 (if you have dashboard 13599), 0225, 0401 and 1071 can ONLY have their Keys Read unless they have been modified or unlocked.

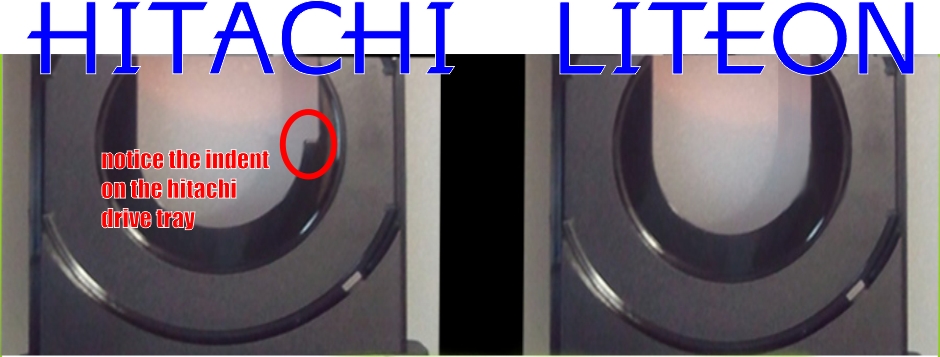

It is easy to check the drive type for slim:


Tools needed for slim

The following table contains the tools needed for slim drives:

# Brand Model Firmware Version Unlock Method Power the Drive SATA Access Key Extraction Bundle JTAG/NAND Flasher
9. Liteon PLDS DG-16D2S Stock 9504/0272(pre 13599 update) Not needed DIYGADGET Connectivity Kit V3 VT6421A PCI-SATA or VT6421 PCMCIA to SATA (may need an IDE to SATA converter as well) Via SATA (dump original fw via JF or slimKey in JF) Read/Write NAND: (USB NAND Flasher with solderless addon or Parallel JTAG). Also requires Xilinx XC2C64A CoolRunner-II CPLD Dev Board (Reset Glitch). The XC2C64A can be programmed via TIAO USB Multi-Protocol Adapter (JTAG, SPI, I2C, Serial) or Parallel JTAG, .
10. 0272, 0225, 0401, 1071 (dashboard 13599) DIYGADGET Slim Unlock Probe via SATA XBOX 360 Connectivity Kit V3 and Slim Unlock Probe Bundle
