Connect USB JP1 cable to your computer

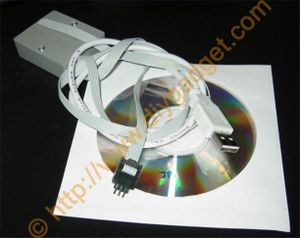

  1. Open the package, you will find the following items: JP1 USB interface, 6 pin male header. The driver can be downloaded from http://www.tiaowwiki.com/download
    Imgfeed 019 u.jpg
  2. Locate your universal remote control's 6 pin header. Usually you will see it after you remove the battery cover.
    Imgfeed 010 u.jpg
  3. Plugin the 6 hole female header to your remote's 6 pin header.
    Imgfeed 021 u.jpg

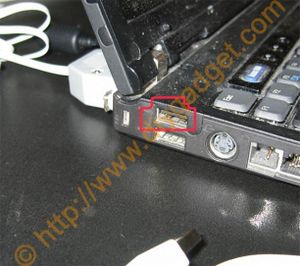

  4. Locate the USB port on your computer.
    Imgfeed 009 u.jpg

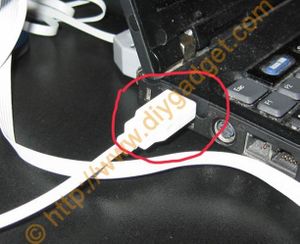

  5. Plugin the USB header to your computer's USB port.
    Imgfeed 020 u.jpg

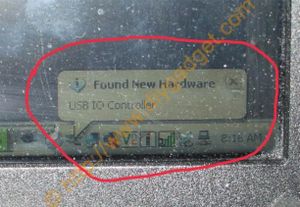

  6. Your Windows XP will report that a new USB IO device was found.
    Imgfeed 003 u.jpg

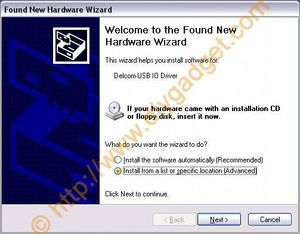

  7. Windows will popup the "Found New Hardware Wizard" window, to allow you to install driver for it. Select "Install from a list or specific location (Advanced)" and click 'Next' button.
    Imgfeed 014 u.jpg

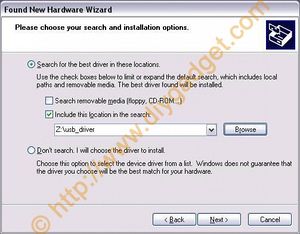

  8. Select "Include this location in the search" and fill in the location of the USB driver. Then click 'Next'.
    Imgfeed 015 u.jpg

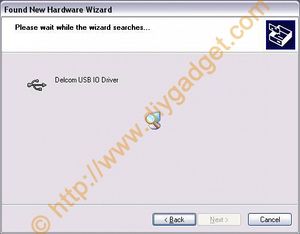

  9. Windows finds the Delcom USB IO Driver.
    Imgfeed 006 u.jpg

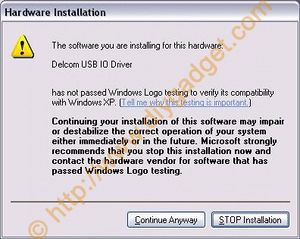

  10. Click "Continue Anyway" if Windows popup the following dialog.
    Imgfeed 016 u.jpg

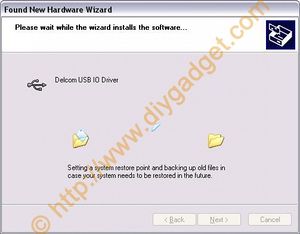

  11. Windows continues to install the driver.
    Imgfeed 004 u.jpg

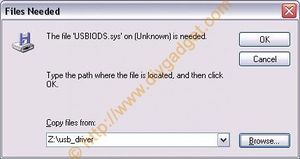

  12. Input the location of "USBIODS.sys" file. In my example, it is z:usb_driver.
    Imgfeed 005 u.jpg

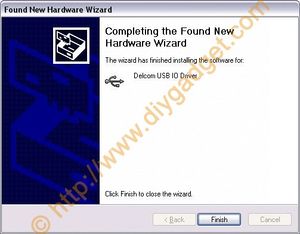

  13. USB IO driver installation is finished. Click 'Finish' button. line up with the notches, then squeeze the two halves together until both retainer loops snap over the ribs and lie falt against the sides. Make sure pin 1 on the PCB is connected to the pin 1 on the IDC connector (identified by an arrow as shown on the picture). See picture for details.
    Imgfeed 008 u.jpg

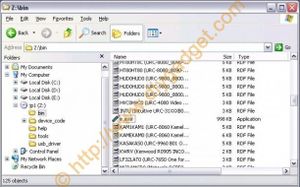

  14. Open your windows explore, locate the ir.exe at your CD-ROM's bin directory. In my example it is z:bin.
    Imgfeed 017 u.jpg

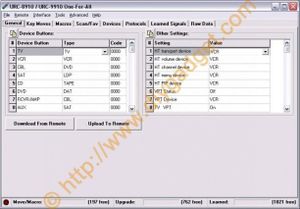

  15. Launch ir.exe, you will see the main interface of ir.exe.
    Imgfeed 012 u.jpg

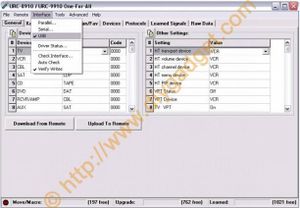

  16. Click 'Interface' on the top menu and make sure 'USB' is selected.
    Imgfeed 011 u.jpg

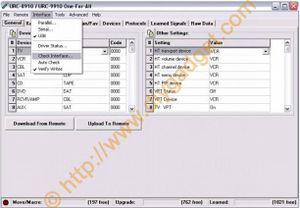

  17. From the same menu, click on 'Check Interface...".
    Imgfeed 022 u.jpg
  18. A small dialog pops up, double check your connections and click 'OK'.
    Imgfeed 002 u.jpg
  19. Another dialog pops up, it indicates that the interface check is successful.
    Imgfeed 013 u.jpg

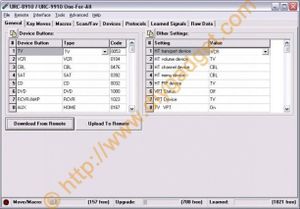

  20. Now you are ready to use IR.exe to download / upload code to your remote control.
    Imgfeed u.jpg
